A revolutionary rangefinder above the rest. See your target through premium glass with a high-resolution graphic overlay that displays distance, mapping, navigation and more for an immersive visual experience.
VERSATILE RANGE
Use the 7X magnification to range trees out to 1,800 meters and animals out to 1,375 meters. In optimal low-light conditions, reach all the way out to 5,000 metres to retro reflective objects. Get pinpoint accuracy and precision with proprietary precision lock technology
GRAPHIC OVERLAY
Get a sharp view through a full-colour, high-resolution graphic overlay that displays distance, location, mapping, ballistics, navigation and more
NAVIGATION FEATURES
Look through the device, and let the graphic display overlay guide you to waypoints you’ve dropped with on-board TopoActive mapping. Keep your bearings with a 3-axis compass, and see elevation profiles of your route. You can even see an overhead perspective of your location on the graphic display overlay.
ADVANCED WAYPOINTS
Leverage advanced GPS technology and onboard sensors to drop a waypoint on objects you’ve ranged with the Laser Locate waypoint projection feature. Project a waypoint beyond rangeable distances with the sensor locate feature. If you lose sight of an object while traveling to it, visual recall on the graphic overlay will guide you back to it
ONBOARD BALLISTICS
Access the onboard Applied Ballistics Ultralight solver with the AB Quantum app, and get the data you need to make the perfect shot. Archers also get arrow ballistics, such as max arrow height, angle-compensated range and more.
NAVIGATION ECOSYSTEM
Send waypoints or data to your compatible smartphone and then share it with your compatible Garmin device so you can close the distance without using the graphic overlay. Spot something but your partner can’t find it? This feature also lets you share waypoints with your partner’s compatible devices.
|
General |
|
| Dimension | 125.41 mm x 89.66 mm x 50.59 mm (4.94″ x 3.53″ x 1.99″) |
|---|---|
| Weight | No battery: 362.88g (0.80 lbs) With battery: 385.1g (0.849 lbs) |
| Water rating | IPX7 |
| Display Type | Multi-colour digital light projection |
| Display Size | 32 mm (1.2″) diagonal |
| Display Resolution | 960 x 540 pixels |
| Battery type | 2 AAA lithium batteries (included) |
| Battery life | 1,400 ranges (1 sec range, 10 sec display) |
| Multi-colour display | Yes |
| Operating range | -20° C to 60° C (-4° F to 140° F) |
| Memory/History | 32 GB internal less file system space |
| Interface | USB-C |
| Laser classification | Class 1 |
|
Daily Smart Features |
|
| Connectivity | Bluetooth® |
|---|---|
| Mobile app | Explore App |
|
Xero Laser Range Finder Features |
|
| Magnification | 7x |
|---|---|
| Objective | 32 mm |
| Field of view | 7 degrees |
| Field of View (linear feet at 914 meters) | 365 ft |
| Eye relief | 18 mm (0.71″) |
| Exit pupil diameter | 4.6 mm |
| Focus adjustment | +/- 4 diopters |
| Compass | Yes |
| Barometer | Yes |
| Precision | +/- .1 m |
| Accuracy | +/- .25 m out to 1000 m +/- 1.0 m beyond 1000 m |
| Distance to deer targets (full sun) | Animals: 1,375 m (1,500 yds); Trees: 1,800 m (2,000 yds); Retro reflective: 5,000 m (5,500 yds) |
| Distance to targets (night) | Animals, 2,775 m; Trees, 3,600 m; Highly reflective, 5,100 m; Retro reflective, 7,000 m |
| Laser Locate | Yes |
| Sensor locate | Yes |
| Onboard mapping | Yes |
| Visual recall | Yes |
| APPLIED BALLISTICS SOLVER | Onboard, unlockable via AB Synapse app |
| Xero archery ballistics | Yes |
| Angle compensated distance | Yes |
| GARMIN SHARE | Yes |
| Stores locations, tracks and courses | Yes |
| Measures distances between 2 points | Yes |
| Area calculation | Yes |
| Compatible with Garmin Explore App | Yes |
| Carrying case | Yes (included) |
| Laser beam divergence | 0.5 x 0.5 mrad |

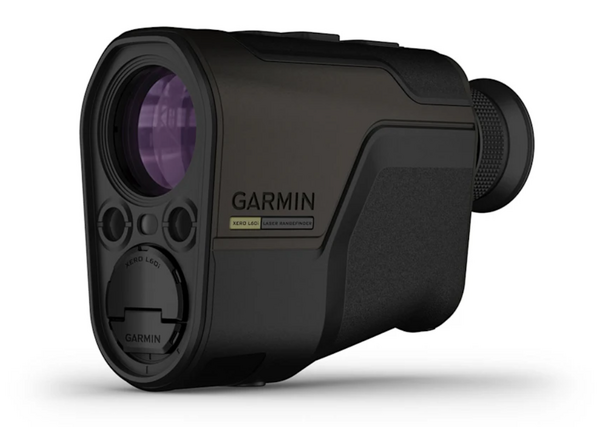

Garmin Xero L60i Laser Rangefinder
