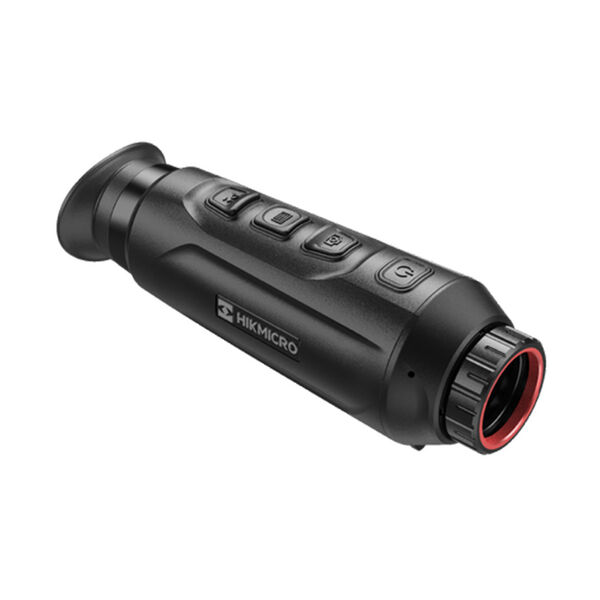

Hikmicro Lynx Pro V2.0 LH25 Thermal Monocular
Equipped with a powerful 25mm lens and an advanced 384px 12μm NETD < 20mK sensor, the HIKMCRO LYNX LH25 2.0 captures highly detailed images at short and medium distances. With its exceptional capabilities, it effectively detects game at distances of up to 1200 meters.
HUGE DETECTION DISTANCE
With an 1200 meter detection distance, the LH25 will allow you to spot targets quickly and move into position even in the most adverse conditions.
REMOVABLE BATTERY
The Lynx Pro LH25 now comes with a removable 18650 battery that allows for longer battery life and longevity of the unit.
| Thermal Module | |
|---|---|
|
|
|
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 384 × 288 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 20 mK (@25°C), F# = 1.0 |
| Lens (Focal Length) | 25 mm, f1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 1200 m |
| Min. Focusing Distance | 2.5 m |
| Magnification | 2.4x to 19.2x (8x) |
| Field of View(H × V), Degrees / m @100m | 10.5° × 7.9°/ 18.4 m×13.8 m |
| Image Display | |
| Display | 1024 × 768, 0.39 inch, OLED |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 6 mm |
| Eye Relief | 20 mm |
| Diopter (Range) | -5 D to +3 D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (16 GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | 6.5-hour continuous running with CVBS and hotspot function off (@25°C) |
| Type-C Power Supply | 5VDC, 2 A |
| Supports External Power Supply | |
| General | |
| Protection Level | IP67 |
| Dimension | 172.5 mm × 56.0 mm× 60.8 mm |
| Weight | 277 g without battery |
| Working Temperature | -30°C to +55°C |
